Features:
●Small dielectric constant
●High photorefractive energy
●Good thermal stability

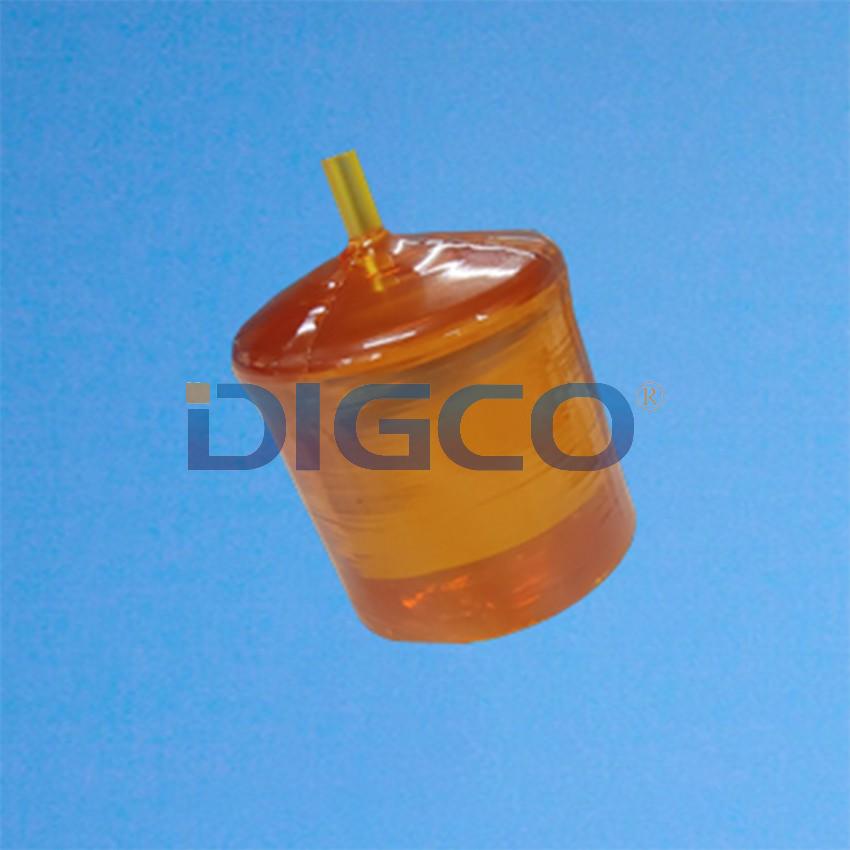

Fe:LiTaO3 crystal is a multifunctional material integrating electro-optic, acoustooptic, piezoelectric, nonlinear, photorefractive and laser activity, which has a wide range of applications. Lithium tantalate not only has good piezoelectric, electro-optic and thermoelectric properties, but also shows stable chemical and mechanical properties. It can be used as electro-optic modulator, infrared pyroelectric detector, broadband, frequency doubling device, holographic memory, high stability piezoelectric device and other functional devices.
Chemical formula | Fe:LiTaO3 |
Growth method | Tira method |
Crystal structure | Cubic system |
Cell parameters | a=5.154Å c=13.783Å |
Density | 7.45g/cm³ |
Hardness | 5.5-6 Mohs |
Melting point | 1650℃ |
Transmission range | 0.4-5.0 μm |
Dielectric constant | es11/eo：39～43 es33/eo：42～43 et11/eo：51～54 es33/eo：43～46 |
Refractive index | no=2.176 ne=2.180@633nm |
Energy resolution | <8% |
Crystal Orientation | X,Y,Z or as required |
Diameter tolerance | ±0.05mm |
Cutting direction | ±0.2° |
Parallelism | <30″ |
Lateral lobe | <15′ |
Chamfering | <0.2×45° |
Maximum size | MaxФ6 inch |
Surface finish | Ra<1nm |
Note: Parameters above can be customized as required. | |
