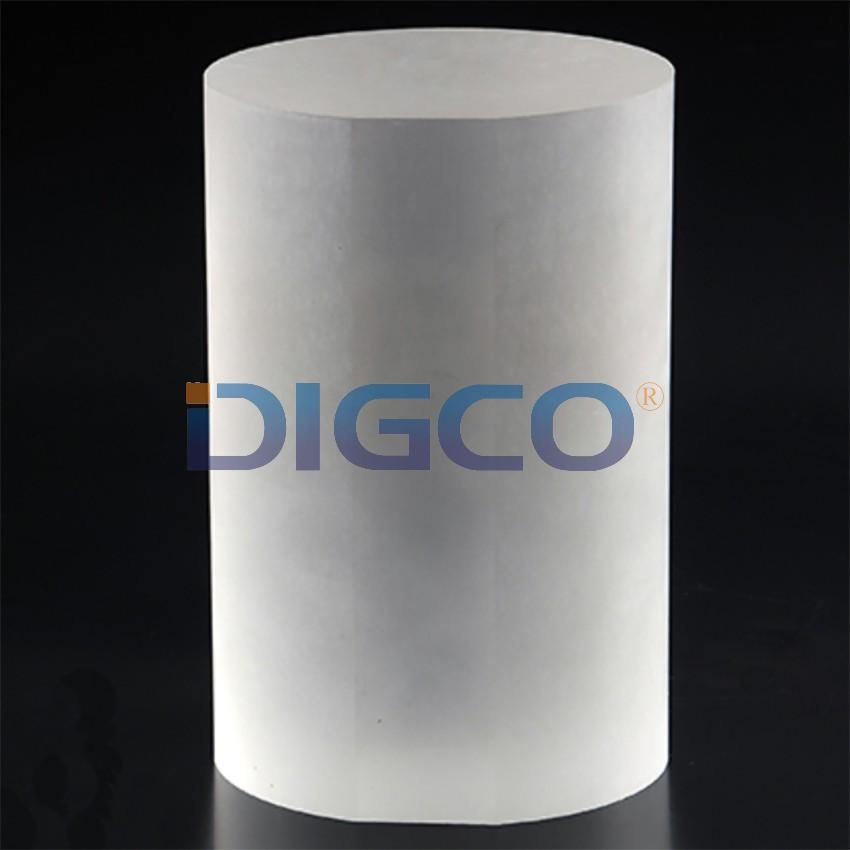

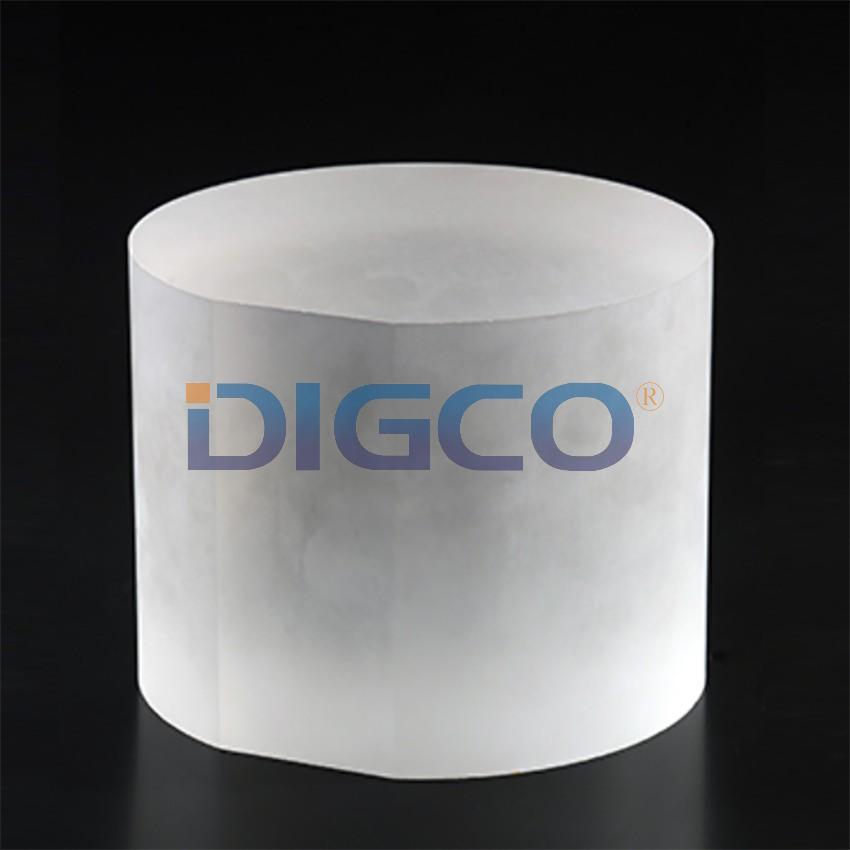

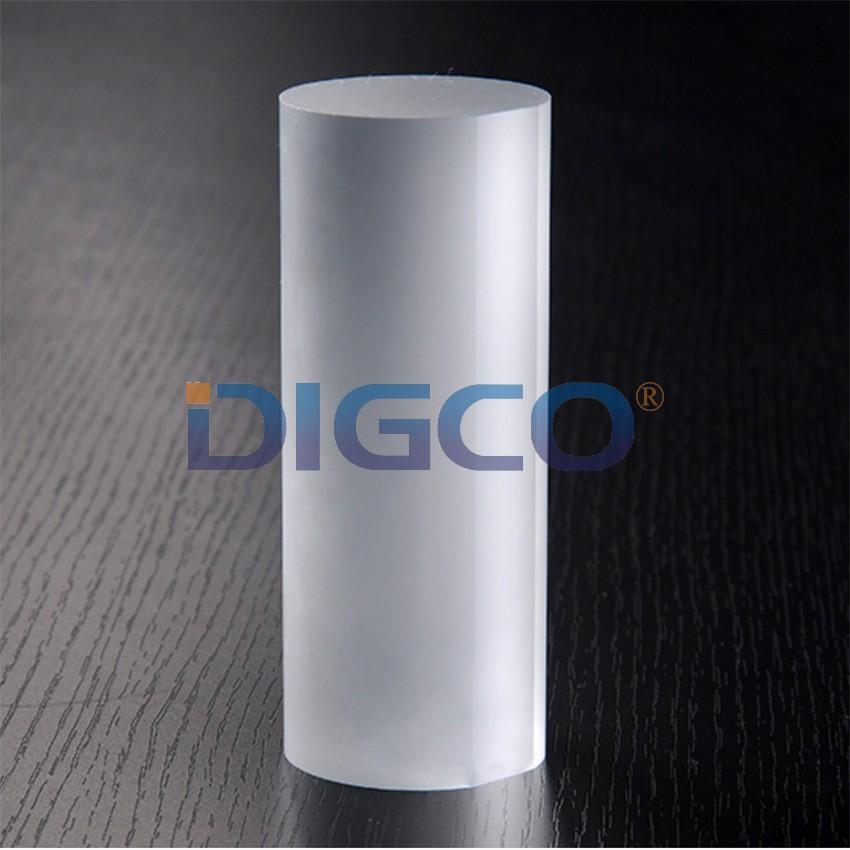

Synthetic sapphire crystal materials are widely used because of their high toughness,strength and melting temperature with good optical properties,which are good for optical windows,prisms and insulators etc...
| Size | Dia0.8mm to 50mm round, customize available |
| Length | +/-0.4mm to 250mm, customize available |
| Tolerance | +/-0.01 for Diameter and +/-0.1mm for length, customize available |
| Surface Quality | 60/40 ,40/20 or 20/10 for end surface, 60/40 or 40/20 for cylinder |
| Flatness | 1/4 lambda per inch @633nm, 1/8 lambda per inch @633nm |
| Conicity | < 1/100 |
| Chamfer | common bevel,fine ground or polished |
| Material | synthetic sapphire monocrystal |
Sapphire windows,fairings，prisms，lens,tubes and other possible optical elements can be customized as requested.
