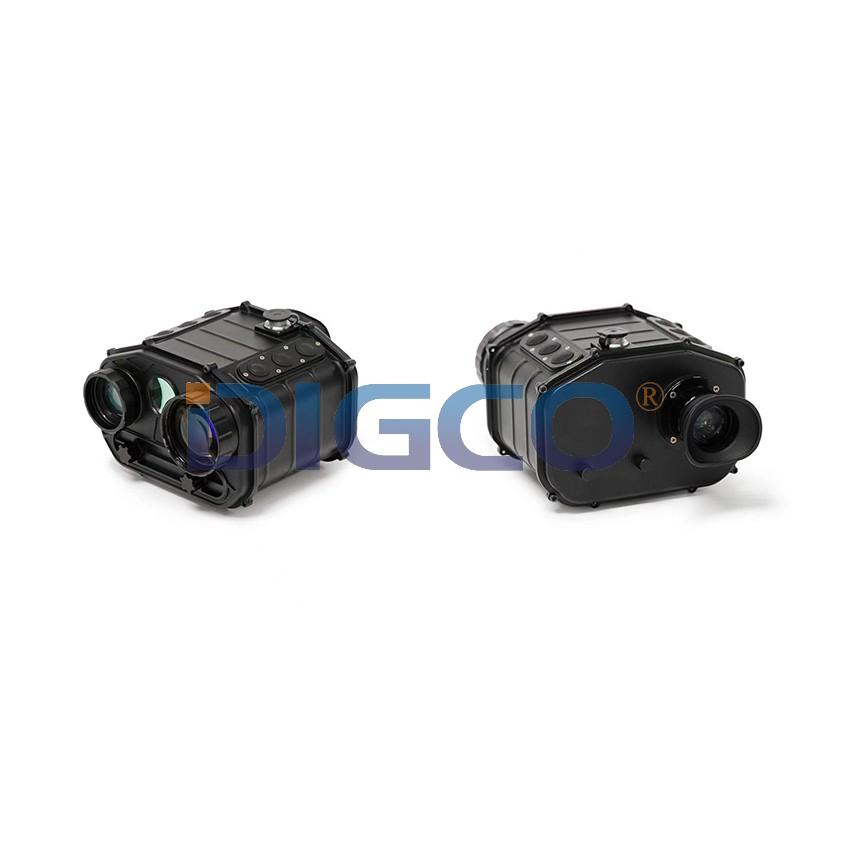

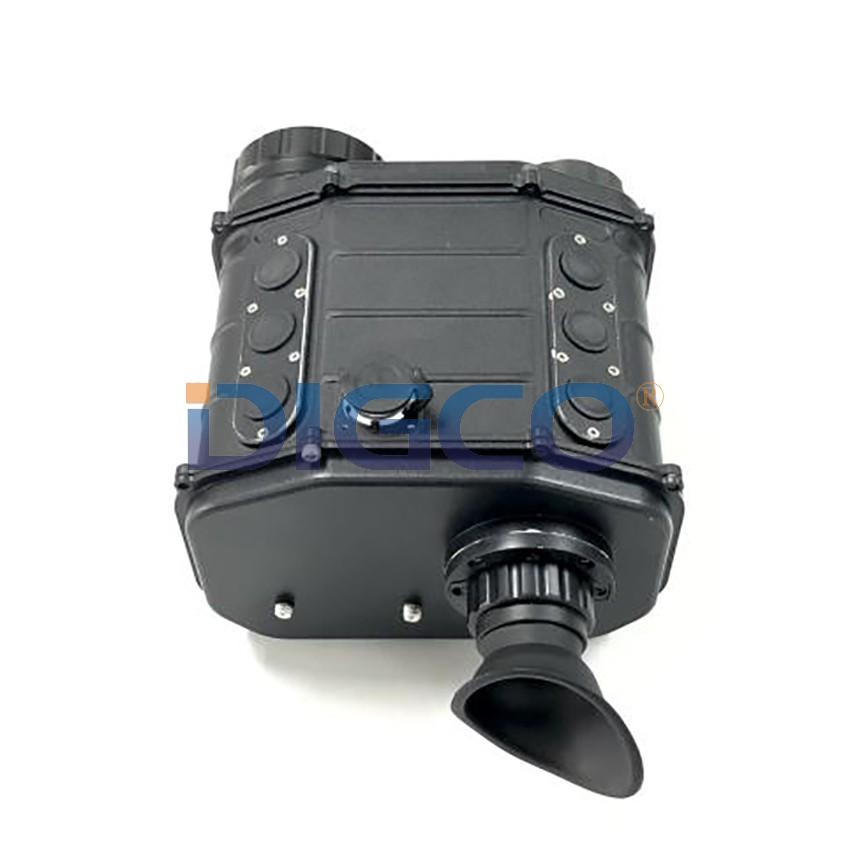

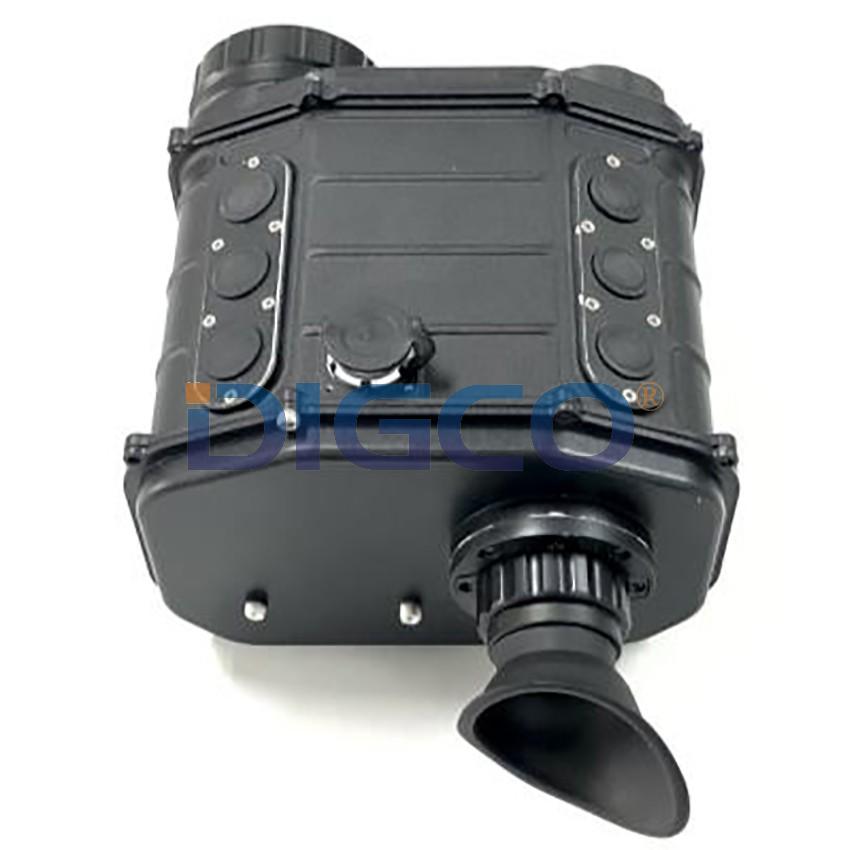

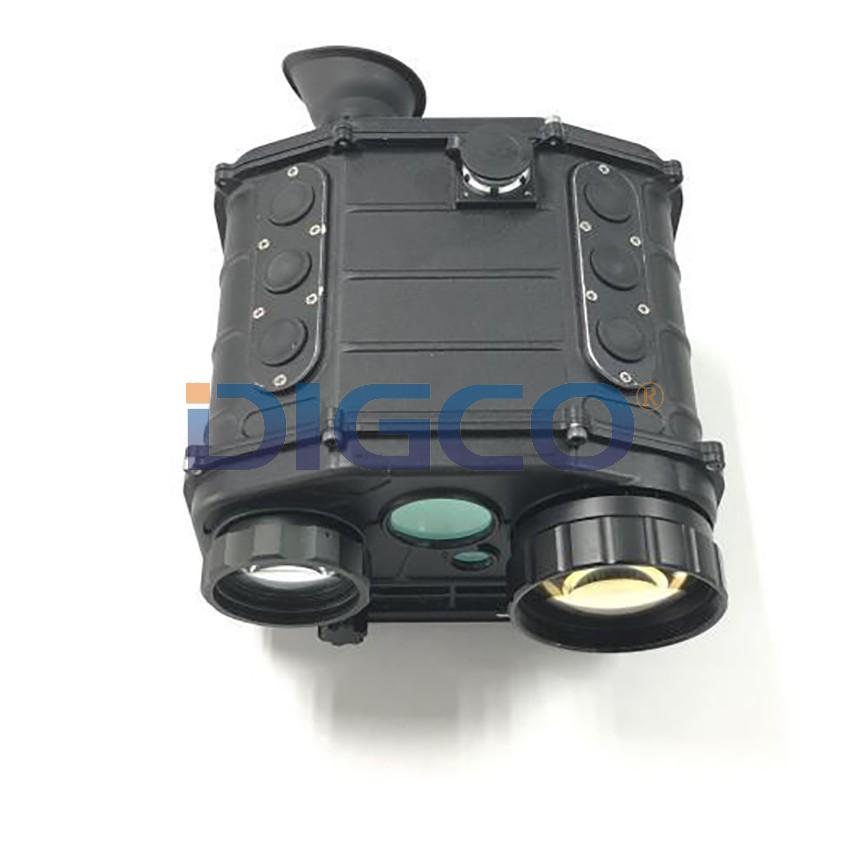

1535LRF6K10H Eye-safe Portable Monocular Laser Rangefinder

TECHNICAL DATA

OPTICS LOW LIGHT CMOS

Resolution             800x 600 pixels

Field of view          H = 9°×V = 6.7°

Illuminance           0.5×10-3Lx

OPTICS DAY

Magnification       20X

Resolution            1920×1080 pixels

Field of view         H = 3°×V =2.2°

RANGEFINDER (DISTANCE)

Laser type             1535nm, class 1 eyesafe

Range capability   20m to 6,000m

Accuracy           2m

Repetition rate      1Hz

DISPLAY

Diopter regulation -5SD ~ +2SD

RECOGNITION DISTANCE

Day                         ≧6km(@vehicle 2.3m×4.6m)

Night                      ≧1km(@vehicle 2.3m×4.6m)

DIGITAL MAGNETIC COMPASS

Azimuth accuracy ≦05° (RMS,inclination -15°~ +15°）

DATA INTERFACE

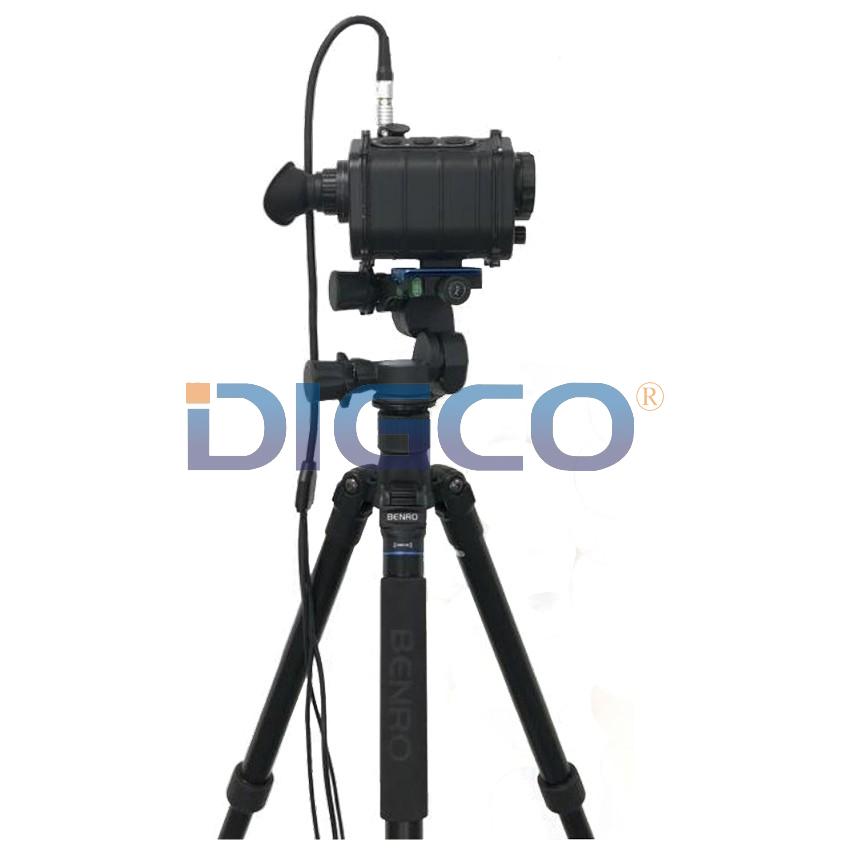

Standard interface standard USB,PAL,TRIPOD

POWER SUPPLY

Lithium battery             type 18650(2200mAh), 5X required

Battery capacity (20°C) ≧6h (dependent on mission profile)

PHYSICAL

Dimensions (L x W x H)  190 x 150 x 110mm³

Weight                             ≦1.5kg with batteries

Operating temperature   -40℃~+55℃

Storing temperature        -50℃~+70℃

Other

Premium Optical Day View, day operation without power consumption

Low Light Imaging for positive identification

SMART design for recording, editing, live streaming

Note:Somewhere will be subject to changes as customized
