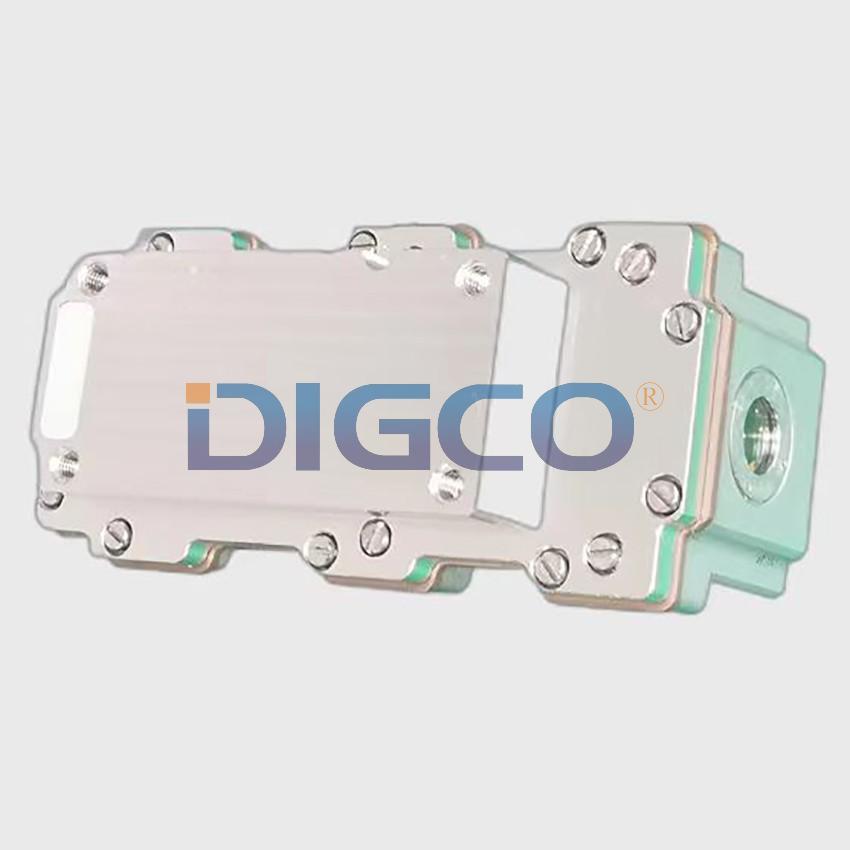

1064nm/1570nm OPO DPSS laser heads

Wavelength(μm)

1.06±0.01/1.57±0.01

Pulse energy（mJ)

≧10

≧20

Pulse width(ns)

15±5

Repetition rate(Hz)

≤20±0.1

Spot roundness (%)

>80

Divergence(mrad)

≤3

DOP

>100:1

QCW operating time (min)

≧3(advised at 10Hz maximum operating time 30 minutes)

Energy Stability

RMS≤5

Pointing Stability(mrad)

<0.05

Operating Voltage（V）

DC24~32

Operating Temperature(℃)

－40~＋60

Storing Temperature(℃)

－50~＋65

Cooling Way

Air

Relative Humidity (RH)

≤80%

Weight(g)

≤ 1200without cooling fin

Dimensions(mm)

≤ 170*80*50 without cooling fin
